80cc Bicycle Motorized 2 Stroke Petrol Gas Motor Bike Engine Kit Set

80cc Bicycle Motorized 2 Stroke Petrol Gas Motor Bike Engine Kit Set
80cc Bicycle Motorized 2 Stroke Petrol Gas Motor Bike Engine Kit Set
Categories
Bicycle Gas Engine Kit
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 11/01/2019

This 80cc petrol gas engine kit is used to upgrade the regular bike to a motorized bike. After converting your bike, you can enjoying riding at a faster speed, which can reach 38km/h. It almost runs as fast as a motorcycle or scooter, making your outdoor trip more convenient. This engine kit fits most 26" or 28" bikes with V-frame.

Features:

A complete engine kit for converting your bike
Heavy duty metal engine body for added durability
Super fuel-efficient, only consuming 2.5 litre fuel per 100km
Fast and smooth, can speed up to 38km/h
Comes with all needed hardware for easy installation
Fit for most type 26" and 28" bikes, such as mountain bikes, road bikes,cruisers, choppers.

Specification:

Mode of Engine:Single cylinder, air-cooling, 2-stroke
Bore & Stroke:47mm & 40mm
Rated Power:2.5Kw/5000r/min (3 horsepower/5000r/min)
Max Power:3.5Kw/6000r/min (5-6 horsepower/6000r/min)
Ignition Mode:CDI
Model of Chain: 415
Chain Length: 110 links
Compression Ratio:6:01
Driving Ratio:18:01
Fuel Type:No.90
Capacity of Tank:2L
Speed Limitation:38km/hour
Lubrication Oil: oil of 2-stroke petrol engine (Or oil for 10W/40.10W/30)
Mixing Ratio of Fuel and engine Oil:16:1 for new sets, 20: 1 after running 500km
Type of Sparking Plug:Z4C 14MM
Volume of oil Consumption:2.5L/100km
Type of Clutch:Friction Plate / Dry
Cooling Mode:Natural air cooling

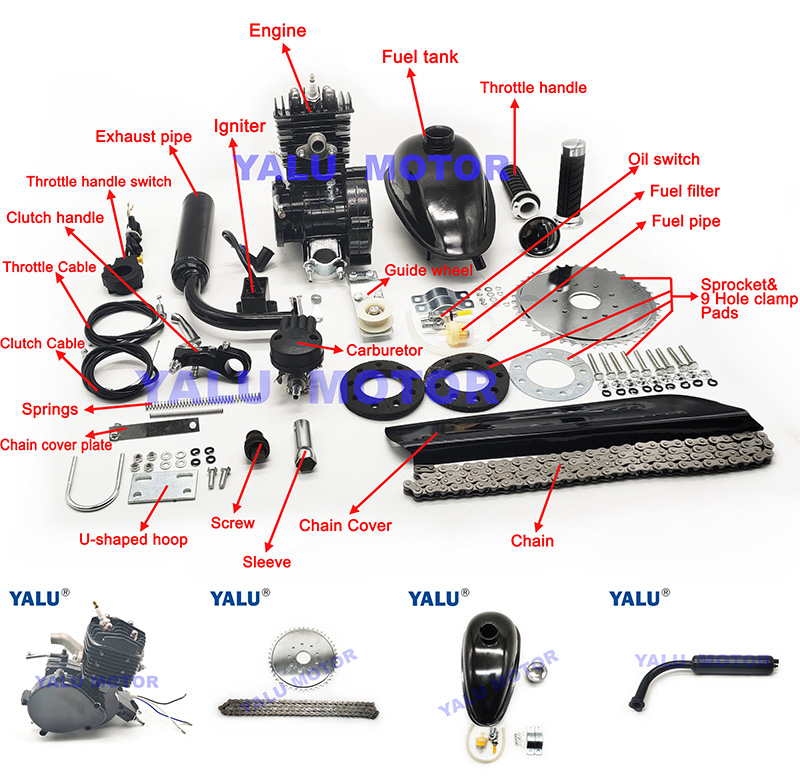

Package included:

1.1xEngine
2.1xFuel tank
3.1xExhaust pipe
4.1xIgniter
5.1xThrottle handle switch
6.1xClutch handle
7.1xThrottle Cable
8.1xCarburetor
9.1xClutch Cable
10.1xGuide wheel
11.1xThrottle handle
12.1xOil switch
13.1xFuel filter
14.1xFuel pipe
15.1xSprocket&9 Hole clamp Pads
16.1xChain cover
17.1xChain
18.1xSprings
19.1xChain cover plate
20.1xScrew
21.1xSleeve
22.1xU-shaped hoop

Note:

Please also keep in mind that the motor will use a mix of gasoline and oil. The oil is used as a lubricant. Without it, the performance and longevity of the motor will be reduced.
Be assured the mixing ratio of fuel and engine oil is 16:1 for new sets, 20:1(18:1 is much better in summer because of the hot weather) after running 500km.
Air cylinder might take some time to adjust to the load. Thus to avoid possible complications for the motor, please limit the riding time to a maximum of 1 hour for the first few rides.

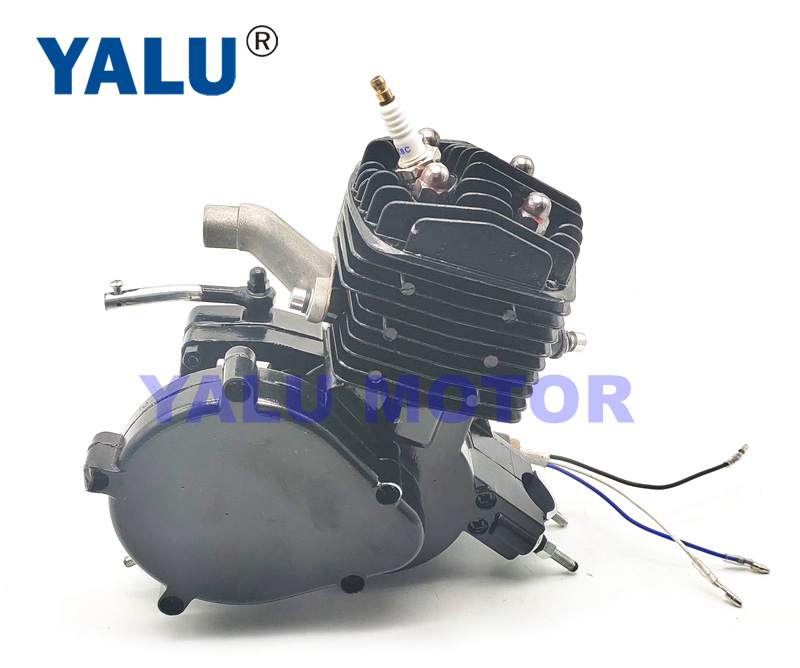

Motor Specification:

Mode of Engine:Single cylinder, air-cooling, 2-stroke
Bore & Stroke:47mm & 40mm
Rated Power:2.5Kw/5000r/min (3 horsepower/5000r/min)
Max Power:3.5Kw/6000r/min (5-6 horsepower/6000r/min)
Ignition Mode:CDI
Model of Chain: 415
Chain Length: 110 links
Compression Ratio:6:01
Driving Ratio:18:01
Fuel Type:No.90
Capacity of Tank:2L
Speed Limitation:38km/hour
Lubrication Oil: oil of 2-stroke petrol engine (Or oil for 10W/40.10W/30)
Mixing Ratio of Fuel and engine Oil:16:1 for new sets, 20: 1 after running 500km
Type of Sparking Plug:Z4C 14MM
Volume of oil Consumption:2.5L/100km
Type of Clutch:Friction Plate / Dry
Cooling Mode:Natural air cooling
