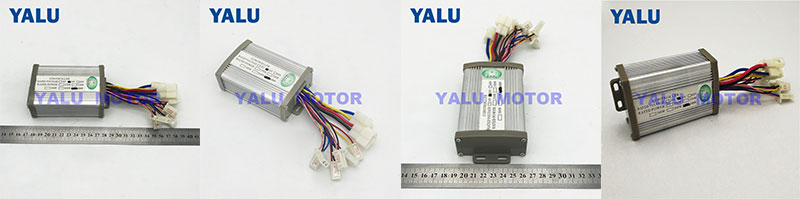

1000W Electric Engine Driver for Skateboard Scooter Brush DC Motor

1000W 24V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:24V
Rated power:1000W
Throttle potential:5V
Under-voltage Protection:19V-20.5V
Current limiting Protection:39A-41A
Adaptation Motor:24V 1000W
Ambient Temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size:10.5*6.9*3.2cm(L*W*H)

1000W 36V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:36V
Rated power:1000W
Throttle potential:5V
Under-voltage Protection:30V-32V
Current limiting Protection:39A-41A
Adaptation Motor:36V 1000W
Ambient Temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size:10.5*6.9*3.2cm(L*W*H)

1000W 48V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:48V
Rated power:1000W
Throttle potential:5V
Under-voltage Protection:40V-42V
Current limiting Protection:39A-41A
Adaptation Motor:36V 1000W
Ambient Temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size:10.5*6.9*3.2cm(L*W*H)
