Brush DC Controller

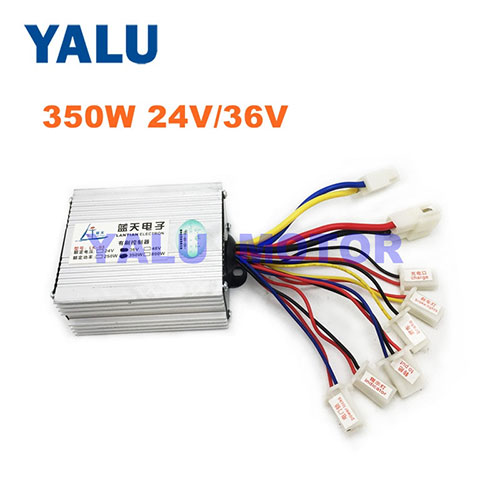

24V 250W 350W Brush DC Controller for MY1016 E-bike and Toy Scooter Motor

24V 250W 350W Brush DC Controller for MY1016 E-bike and Toy Scooter Motor
24V 250W 350W Brush DC Controller for MY1016 E-bike and Toy Scooter Motor 24V 250W 350W Brush DC Controller for MY1016 E-bike and Toy Scooter Motor
Categories
Brush DC Controller
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 08/31/2019

250W 24V Controller Main technique parameter:
Controller type:Brush type
Rated voltage 24V
Rated power 250W
Throttle potential 5V
Under-voltage protection:19-20.5V
Current limiting protection 19A-21A
Adaptation motor 24V250W
Ambient temperature -20℃--45 ℃
Brake potential:Low level brakes
Size:7.5*5.3*2.1(L*W*H)


250W 36V Controller Main technique parameter:
Controller type:Brush type
Rated voltage 36V
Rated power 250W
Throttle potential 5V
Under-voltage protection:30-32V
Current limiting protection17A-19A
Adaptation motor 36V 250W
Ambient temperature -20℃--45 ℃
Brake potential:Low level brakes
Size:7.5*5.3*2.1(L*W*H)


350W 24V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:24V
Rated power:350W
Throttle potential:5V
Undervoltage protection:19-20.5V
Current limiting protection:20A-23A
Adaptation motor:24V350W
Ambient temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size:9*6.9*3.7cm(L*W*H)

350W 36V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:36V
Rated power:350W
Throttle potential:5V
Under-voltage protection:30-32V
Current limiting protection:19A-21A
Adaptation motor:36V350W
Ambient temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size:9*6.9*3.7cm(L*W*H)

This Item Include:
1 x Brush DC Controller
