High Speed Brush DC Motor

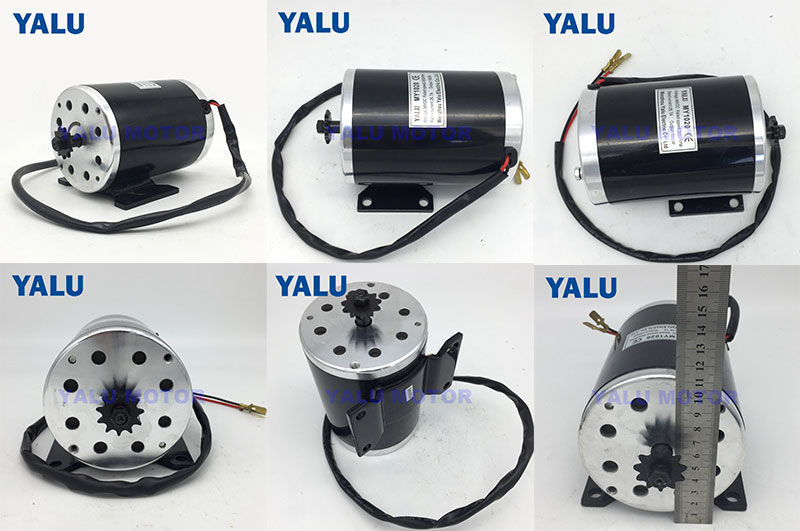

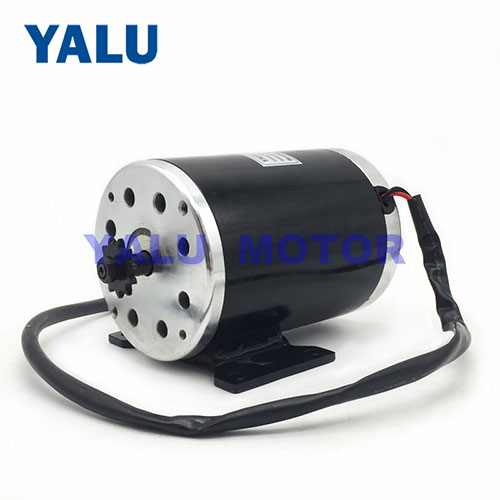

Electric Go-kart brushed DC Motor 1000W MY1020 for Razor Minibike

Electric Go-kart brushed DC Motor 1000W MY1020 for Razor Minibike
Electric Go-kart brushed DC Motor 1000W MY1020 for Razor Minibike Electric Go-kart brushed DC Motor 1000W MY1020 for Razor Minibike
Categories
High Speed Brush DC Motor
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 08/31/2019

Product Description:
Electric Scooter Brush Motor, Chain drive electric scooter motor, High Speed Permanent Magnet Motor .
With metal bracket to mount to scooter 11 tooth gear for # 25H chain,Also available for T8F gear;
This Model motor power range from 500W to 1000W.The Volt available from 24V to 48V;
It mainly have two types: with foot or no foot.
DIY bicycle , E-bikes , Electric scooters. Compatible with many other electric scooter makes and models.

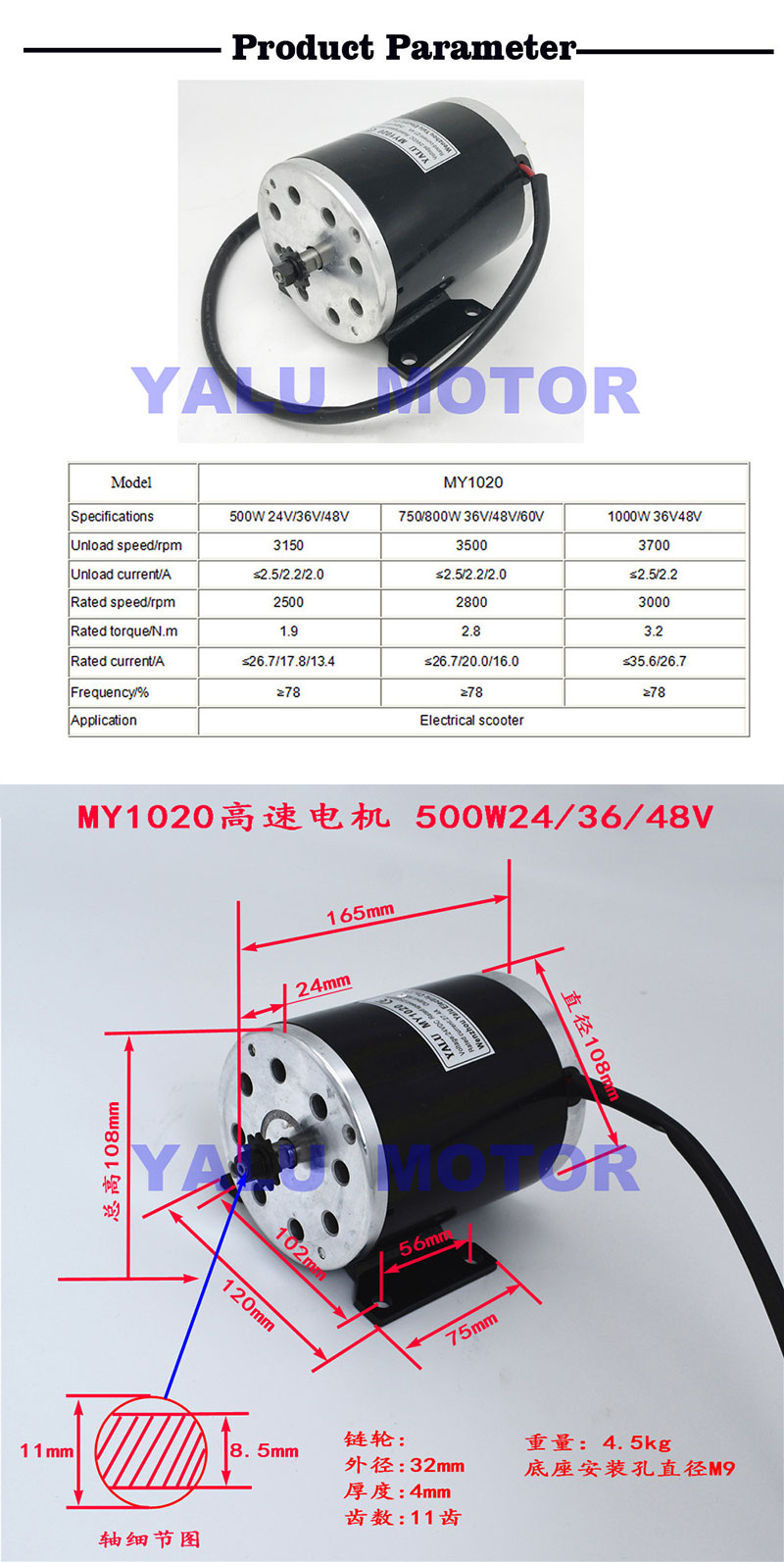

500W Specifications

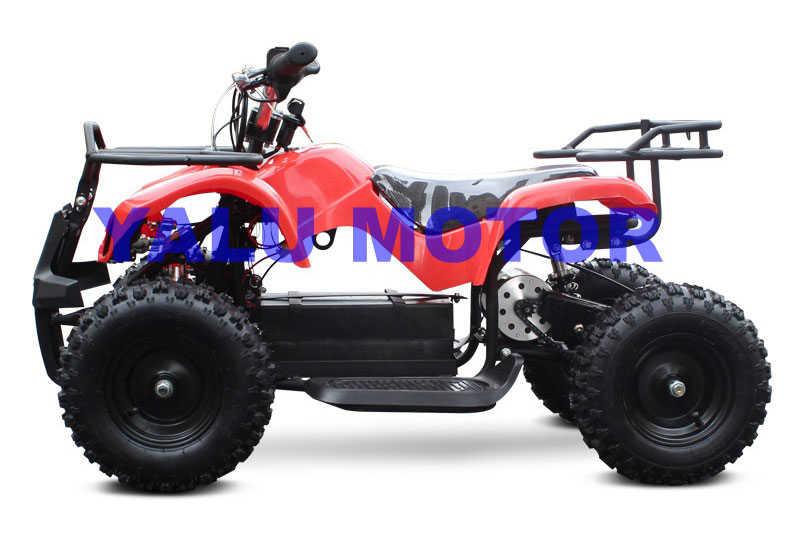

For electric scooter, mini bike quad and Go-Kart. It may also work for bicycle.
- 24V DC
- Max 500 Watt, 26.7 amps
- Max 2500 RPM
- Chain drive (11 teeth sprocket) #25 chain 6.35 pitch
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet

750W Specifications
- 36V/48 DC 28.5 amps
- Max750 Watt
- Max 2800 RPM
- Chain drive (11 teeth sprocket) #25 chain, 6.35 pitch
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet

1000W Specifications
- 36V/48V DC 35.6/26.7 amps
- Max 1000 Watt
- Max 3000 RPM
- Chain drive (11 teeth sprocket) #25/T8F chain, 6.35 pitch
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet

This motor should work in some Xtreme or Razor electric scooter, mini bike or go-kart using a 500W to 1000W motors that looks similar to this one. Should also work with any other brand with similar specs in motor.... Please check connector type and motor size and specs. before buying as replacement.
Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.

This Item Include:
1xMY1020 Brush DC Motor
