DESCRIPTION:
The Motor Power have:500W/800W/1000W can be Optional.
The 500W Motor Parameter:
*Middle drive Motor
*Reduction Gear Brushless DC Motor
*Rated voltage: 48V
*Rated power: 500W
*No-load current: ≤2A
*Rated current: 13.2A
*Torque N.m :3.45
*No-load speed: 4000rpm
*Load speed: 3200rpm
*Efficiency: ≤85%
The 800W Motor Parameter:
*Middle drive Motor
*Reduction Gear Brushless DC Motor
*Rated voltage: 48V
*Rated power: 800W
*No-load current: 2.4A
*Rated current: 20A
*Torque N.m :4.30
*No-load speed: 4500rpm
*Load speed: 3100rpm
*Efficiency: ≤80%
The 1000W Motor Parameter:
*Middle drive Motor
*Reduction Gear Brushless DC Motor
*Rated voltage: 48V
*Rated power: 1000W
*No-load current: 3A
*Rated current: 25A
*Torque N.m :5
*No-load speed: 5000rpm
*Load speed: 3500rpm
*Efficiency: ≤80%
Install Parameter:
*Reduction ratio: 1:10
*Noise: <55Db
*The Center shaft,five way size suitable for 68mm(the pedal not included).
* The chain wheel 32T-42T-42T,the outer 42T drives by motor. if the kit will be
used in hilly areas, we recommend choosing a relatively small chain wheel ).

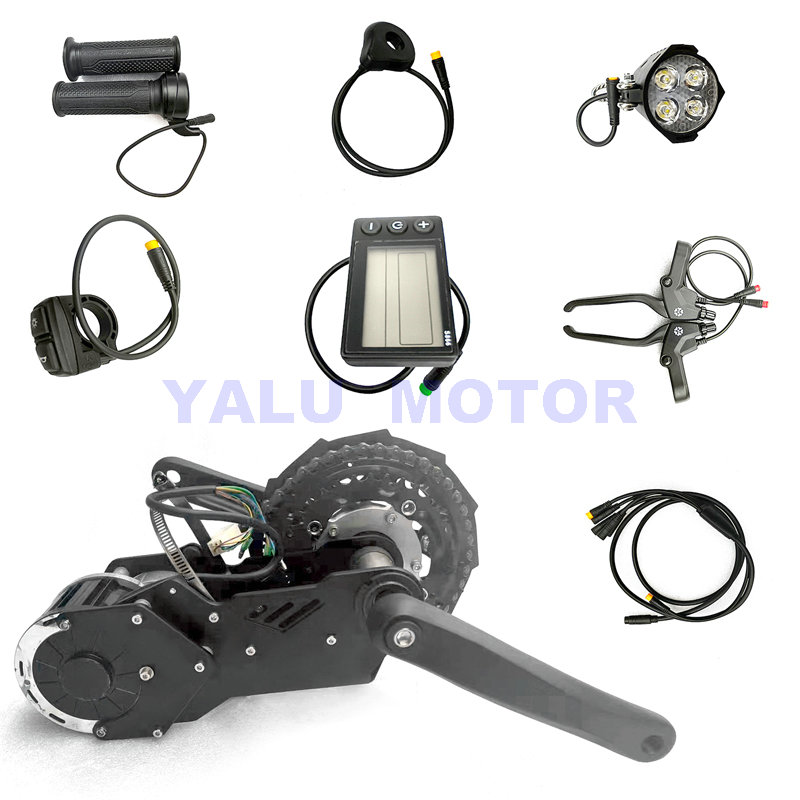

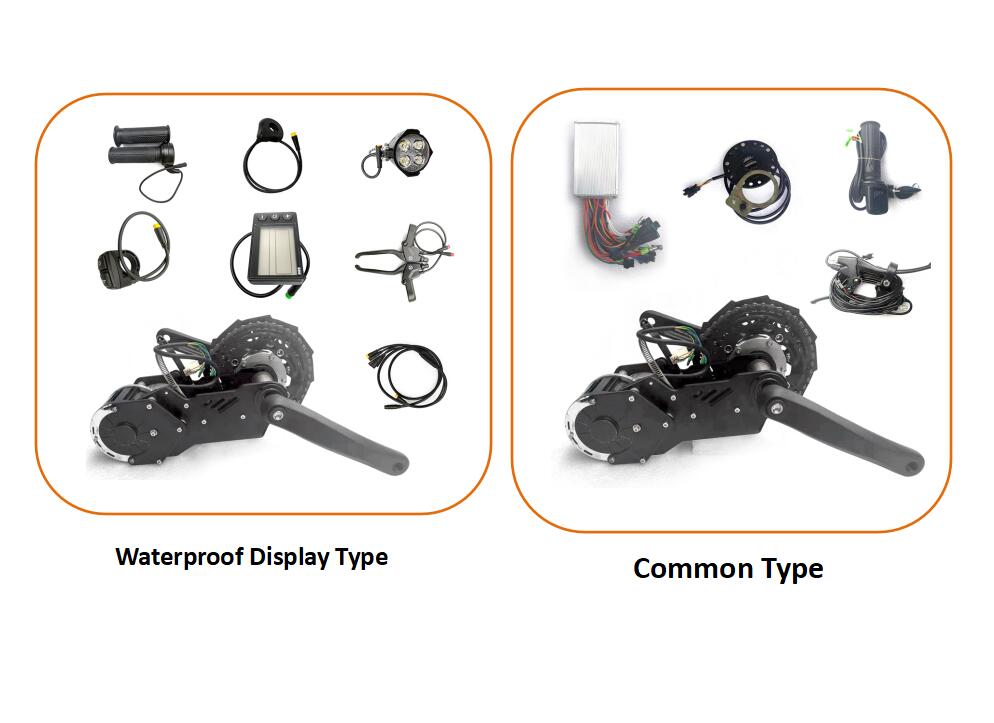

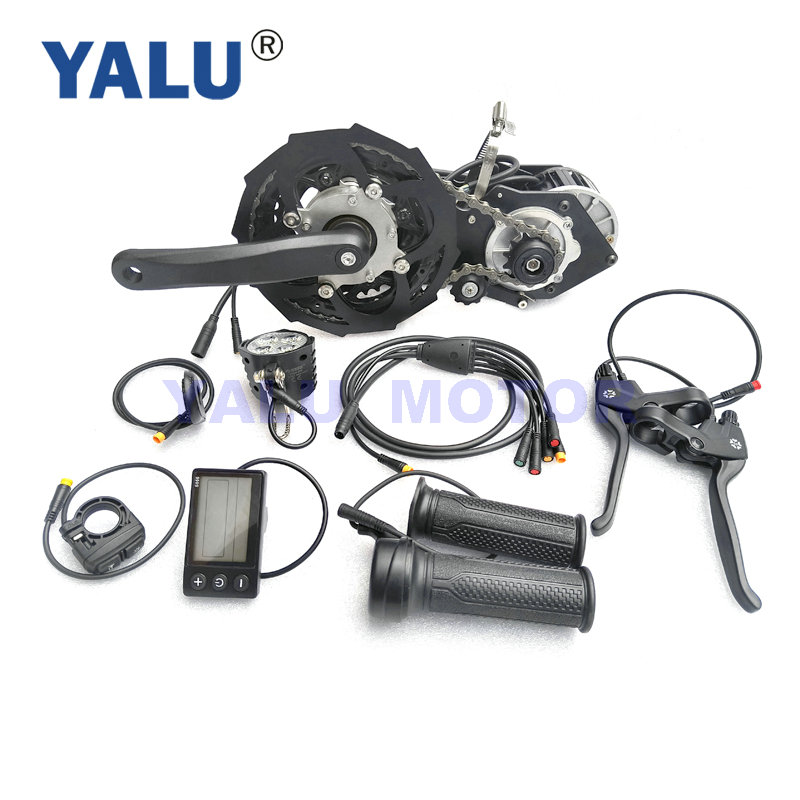

Type1---Waterproof Display Type
The Parts List:

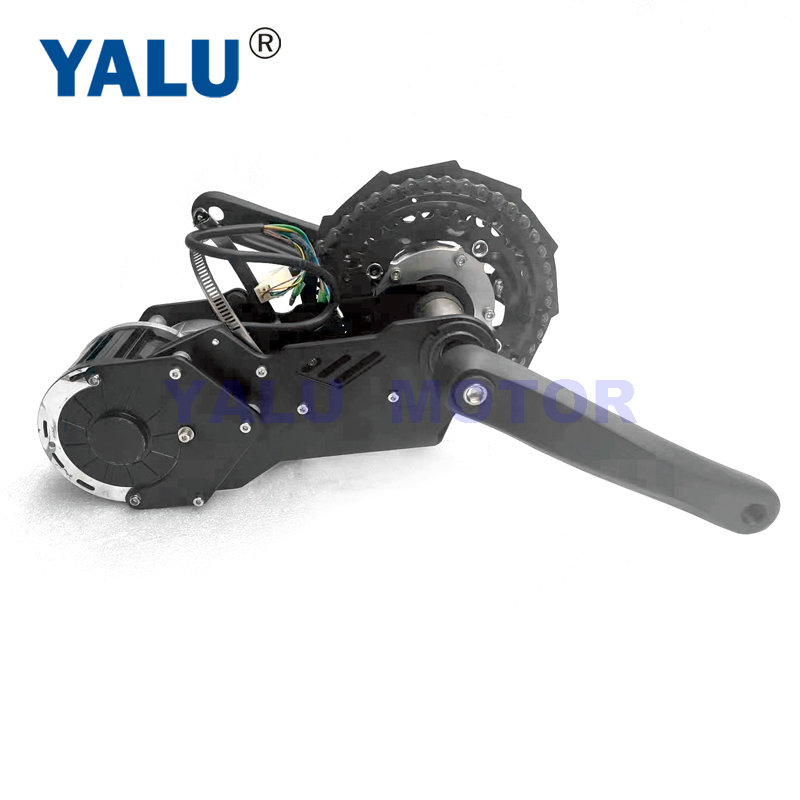

1. 1x The Integrated Install Middle Drive Motor Set
(a.Brushless DC Motor 48V 500W; b. Install Bracket;
c. Crank set+center shaft; d.Chain wheel 32T-42T-42T; e. Chain. )
2. 1x Brushless Controller 48V 500W(install built-in the bracket)
3. 1x LCD display model S866
4. 1x Twist throttle
5. 1x Brake Level
6. 1x LED Headlight
7. 1x PAS Sensor
8. 1x Light&Horn Switch
9. 1x Water proof wire harness

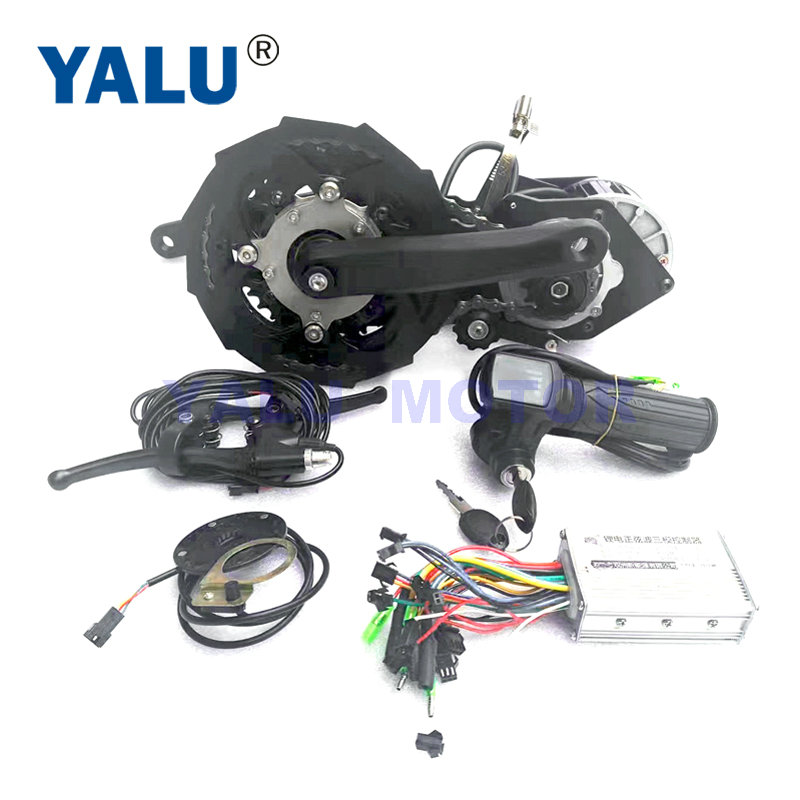

Type2---Common Type
The Parts List:
1. 1x The Integrated Install Middle Drive Motor Set
(a.Brushless DC Motor 48V 500W; b. Install Bracket;
c. Crank set+center shaft; d.Chain wheel 32T-42T-42T; e. Chain. )
2. 1x Brushless Controller 48V 500W(install built-in the bracket)
3. 1x Digital throttle(with battery indicator & key switch)
4. 1x Brake Level
5. 1x PAS Sensor
The Install Video Link: https://www.youtube.com/watch?v=njWBN4C3CtQ
