Middle Drive E-bike Kit

Brushless Middle Drive Motor Kit 50KM Fast Powerful for Mountain Bike

Brushless Middle Drive Motor Kit 50KM Fast Powerful for Mountain Bike
Brushless Middle Drive Motor Kit 50KM Fast Powerful for Mountain Bike Brushless Middle Drive Motor Kit 50KM Fast Powerful for Mountain Bike
Categories
Middle Drive E-bike Kit
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 01/09/2020

DESCRIPTION:


This Kit Can COMPLETE WITH BAFANG Middle Motor Kit. And Cheaper than Bafang Motor Kit.
The speed can reach 40-50KM.

Features:1:23 super high speed ratio;
95MM super large rotor; large torque;
Fine workmanship: aviation aluminum profile, surface anodizing;
Simple installation; Easy to use, Stable maintenance-free;
Climbing ability bigger than 40°

Vehical Type: 12-26 inch, BB( Five-way): 68-73mm universal use

Features:

1:23 super high speed ratio;
95MM super large rotor; large torque;
Fine workmanship: aviation aluminum profile, surface anodizing;
Simple installation; Easy to use, Stable maintenance-free;

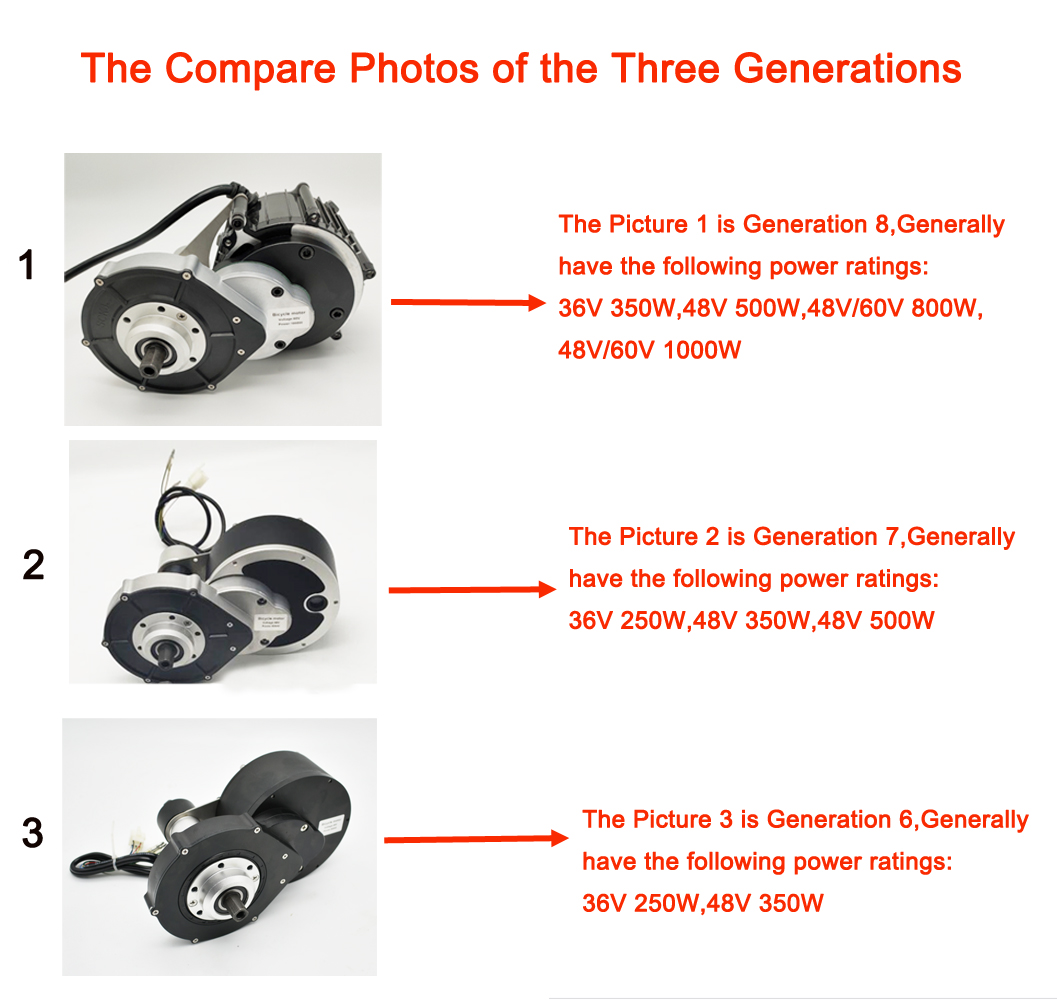

Motor Voltage&Power:

250W 36V ;

350W  36V/48V;

500W  48V;

800W  48V/60V;

1000W  48V/60V;

Some Main parameter of Motor:

48V 500W:

Rated Volt: 48V; Rated Power:500W; Torque: 138NM;

Speed Ratio: 1:23



48V 800W:

Rated Volt: 48V; Rated Power:800W; Torque: 220-230NM;

Speed Ratio: 1:23,Rated Speed:3300R/MIN,Rated Current: 20A

The Motor Size please find at the column of MOTOR SPECS

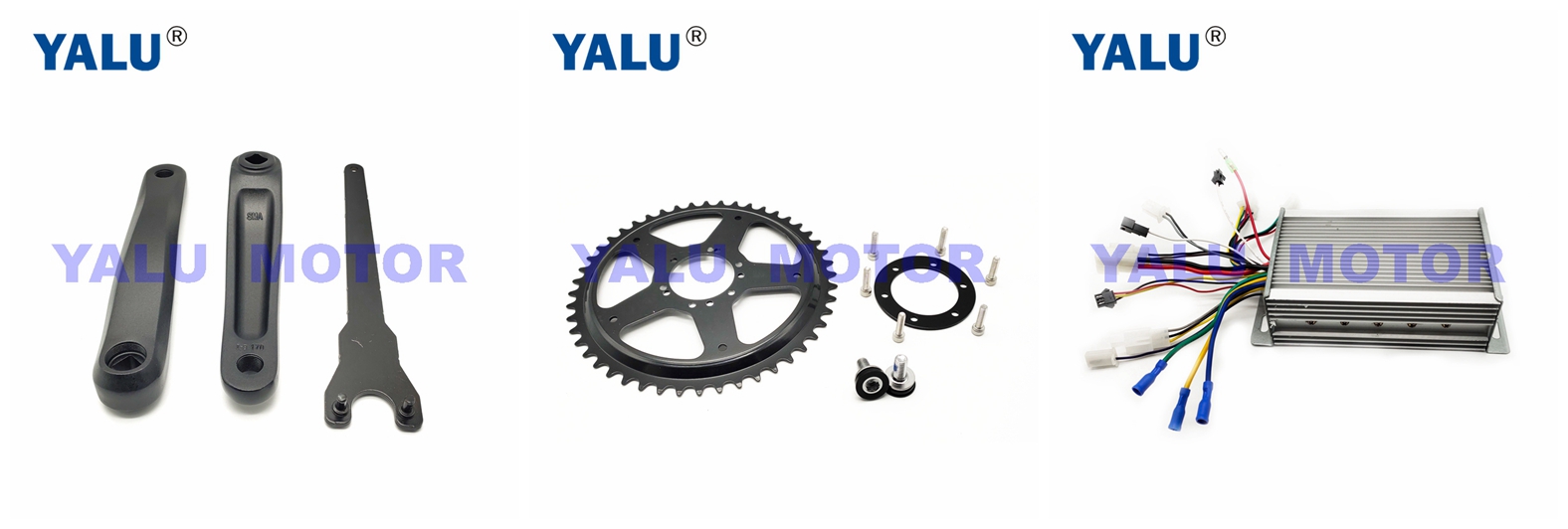

This Item Include:
1.Mid brushless DC Motor  ----1pcs;
2.Sprocket----1 PCS;
3.Controller ----1pcs ;
4.Crank ----1PCS;
5.Throttle----1PCS;
6.Installation Tools----1 set;
