Electric Bicycle Middle Motor Kit 36V 350W MY1016Z with LED Headlight

DESCRIPTION:

Specifications of Middle Motor bike conversion kit:

A."Mid-mounted" electric bikes are the future of E-bike development:
Electric bicycle kit, from  the simple side-mounted motor to the hub motor electric bike  kit, the centre of gravity is  not right in the  middle, this leads to the unbalance of electric bike and easily  caused dangerous. This mid-mounted  electric  bike kit resolved  this problem and it is the most efficient among the others. Mid-mounted bike in Japan has been named "the best national design", the main reason is that the mid-mounted electric bike structure has a  distinctive design, which makes it well-balanced, and thus,  people can ride comfortably and can easily handle it. For the same power  output, this type of kit has the highest efficiency and longer life.

B.The advantages of mid-mounted electric bike conversion kit:
the mid-mounted electric bike conversion kits are of high  quality, aimed to be people-oriented, and focused on the care of the  battery. Also, its main structure is very light, simple, clear and stable. It is very efficient (For the same battery, mid-mounted  kit can ride 5-10km more than the hub motor, and can reduce the mass of bike for 4-8kg). The reason  why the mid-mounted  electric bike is more superior is that its battery, motor and gearbox are near the central axis of the bicycle, which allow better balance.

1.Can I install the kit on my 18 speed/24 speed bike?
Yes, you can. This kit is designed for all types of bikes(exclude one type).You can still shift gears while you are using the motor or manpower.

2.What battery  is recommended for this kit?
If the kit is 24V,  you need two 12V batteries, (lead acid or lithium), or one 24V battery.After they are linked together, the minimum capacity should >12AH and  recommended>20AH
If the kit is 36V,  you need three 12V batteries, (lead acid or lithium), or one 36V battery.After  they are linked together, the minimum capacity should >12AH and  recommended>20AH

3.Is the kit  include batteries?
No, the kit  includes all the parts you need except batteries to convert the bike into electric bike.You need to buy the batteries by yourself.

4.Where should I  mount the batteries?
We do not  provide the battery box. But you can install it above the rear wheel on  rear rack, or even make a box(need some DIY skills).You can design whether the  batteries can take out or hard wired.

5.Is the kit  include a user manual?
Yes, we provide manual for our buyer.

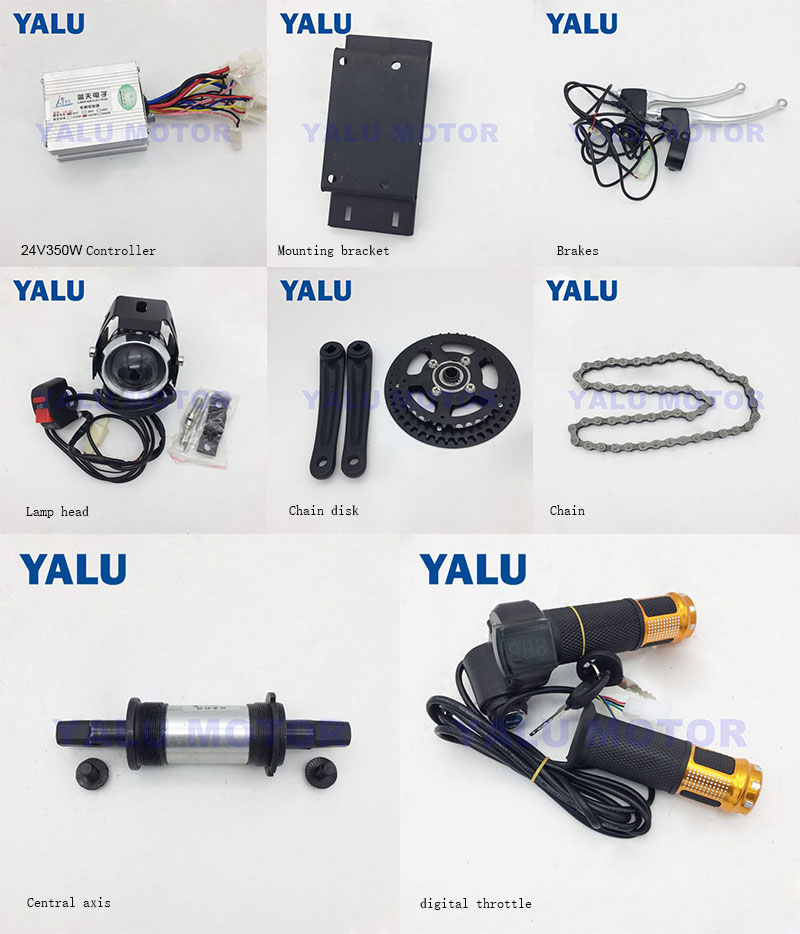

Includes:

This item include:

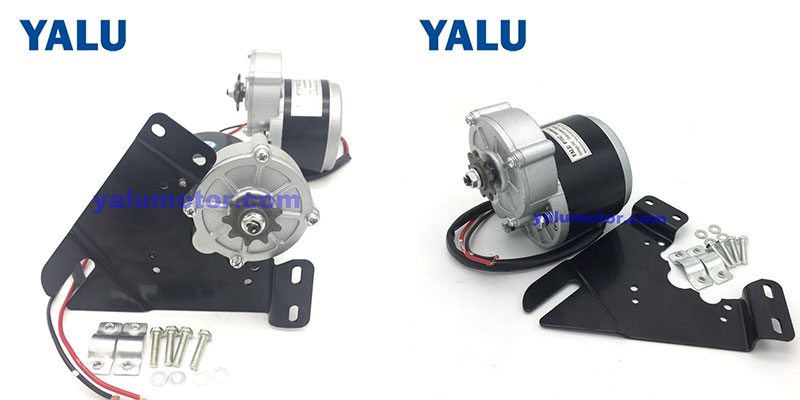

1.1 x 24/36V 250W/350W brush motor
2.1 x Motor bracket & bolts
3.1 x Chain wheel
4.2 x Crank ( left side and right side)
5.1 x Bottom bracket
6.1 x Throttle (with battery indicator & key switch)
7.1 x Chain
8.1 x Controller
9.1 x Guide wheel
10.1 x LED lens light
11.1 x Light switch
12.1 x Brake lever
13.1 x Detailed manual

Note: this kit without battery and battery charger .
This kit is for bike with 68mm bottom bracket only!
Suitable for all type of bike(mountain bike /road bike/normal bike...)

Details

Motor SPECS:

APPLICATIONS:
