The products Basic Parameter |
|
|
Power supply voltage： |
DC24V
|
|
Output Current: |
40A/50A |
|
Brake voltage: |
24VDC
|
|
Brake current: |
300-3000mA |
|
Brake mode: |
Automatic/Manual |
|
Wireless communication mode: |
Bluetooth |
|
Indicator Model: |
LED indicate/buzzer indicate |
|
Operation voltage: |
DC18-34V |
|
Lighting volt: |
12VDC |
|
Charging current: |
6A Max |
|

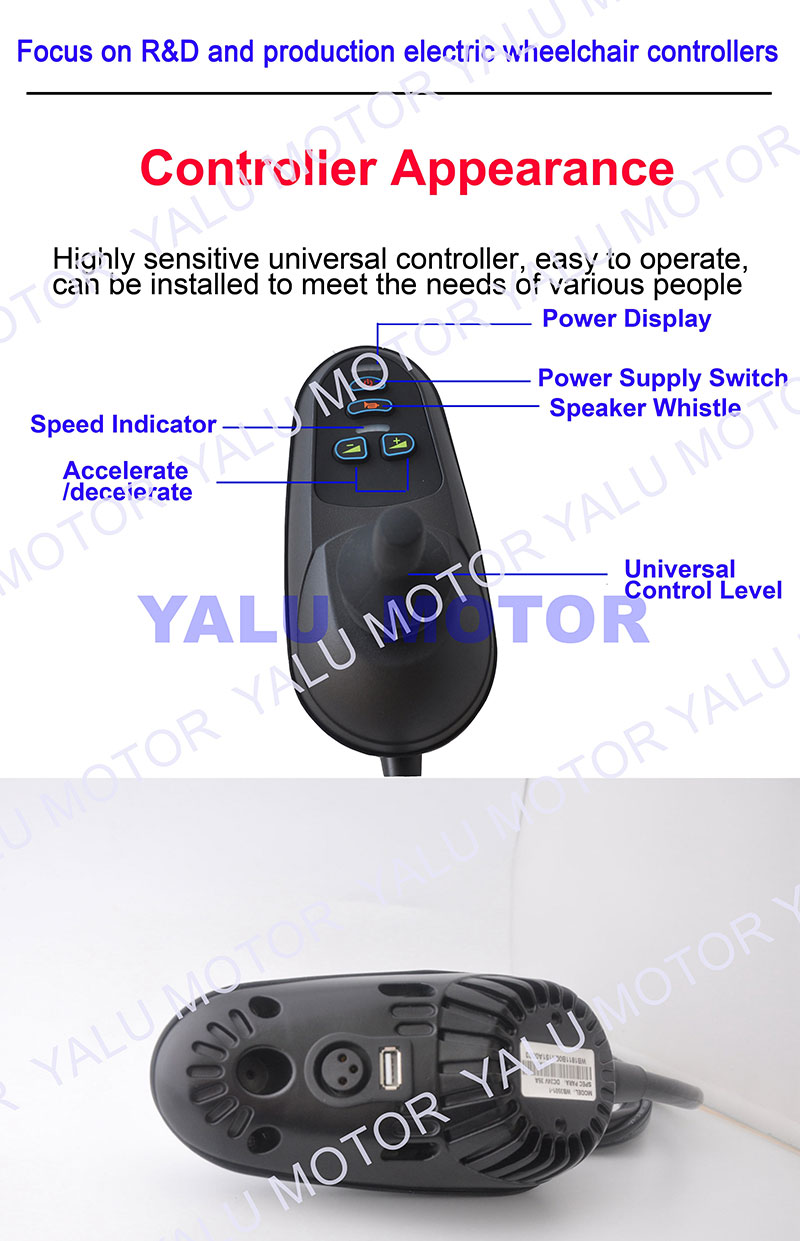

Control way: |
Hall remote control lever,bluetooth handle(can optional) |
|
Interface: |

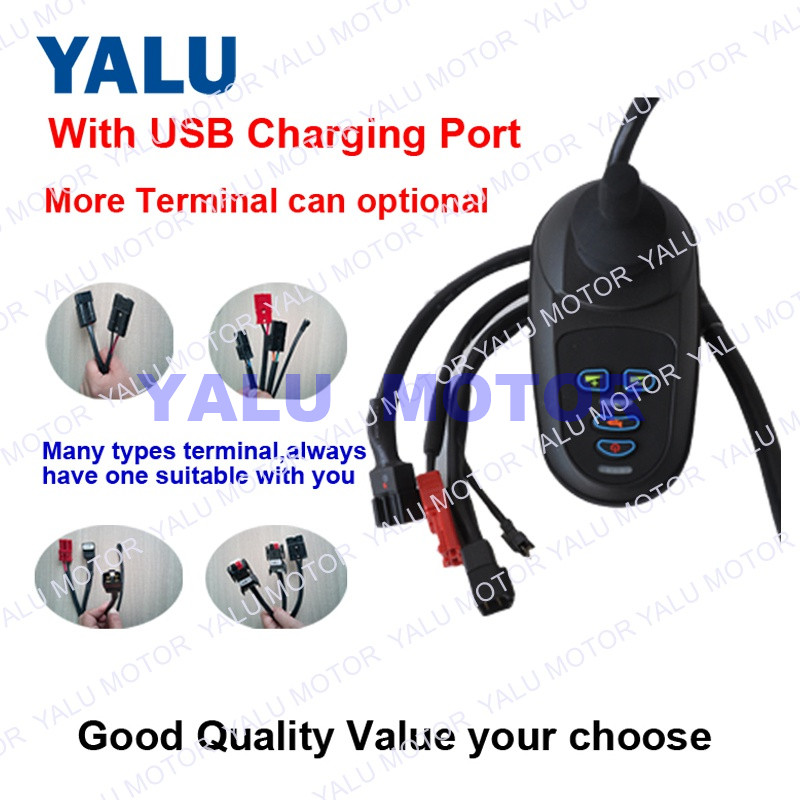

Canon charging port,USB Charging port |
|
Waterproof Grade: |
IPX5 Electronic equipment |
|
Operation temperature: |
-25’C to +50’C |
|
Storage temperature: |
-40’C to +65’C |
(You can provide debuggers and decodes for bulk customers)
1.Voltage,current,temperature control detection:In the case of overvoltage,undervoltage, overcurrent,overload,etc.,there are alarm and shutdown protection functions.
2.Watchdog function:If the hardware or software encounters interference or unpredictable conditions,it will restart after half a second.

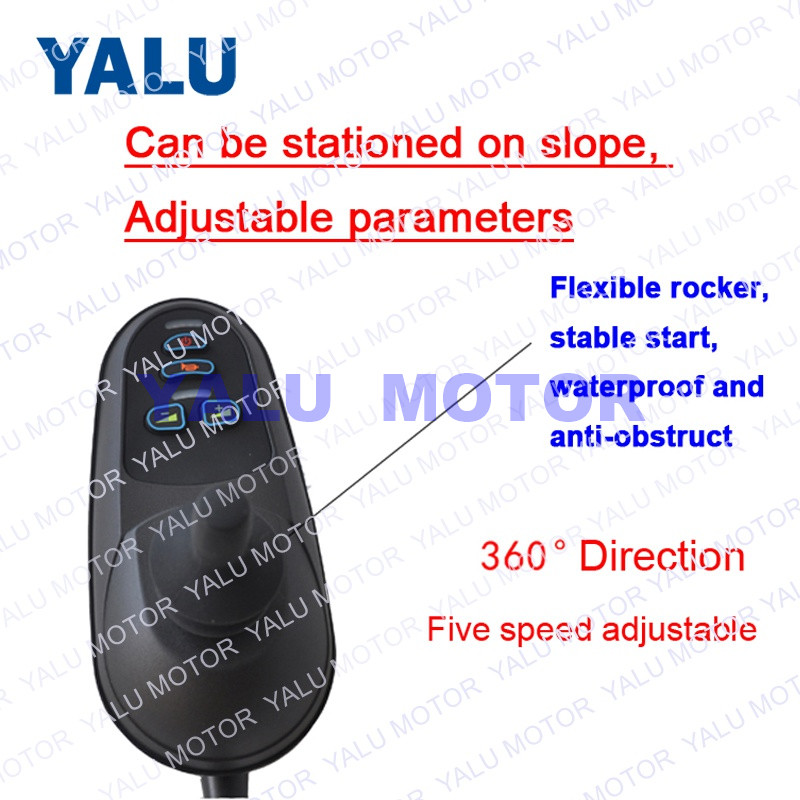

3.Power-off protection function:During operation,the shutdown motor will gradually decelerate to zero.When running on the slope,it can automatically stand on the slope.If the operation is stopped by mistake,it also has the function of suppressing the slope.
4.Boot detection:including left and right motor line connection detection,left and right brake line connection detection,whether the joystick detects battery power at the initial position.LED lights and sound mode alarms will be detected after the corresponding problem is detected.
