Wheelchair Controller

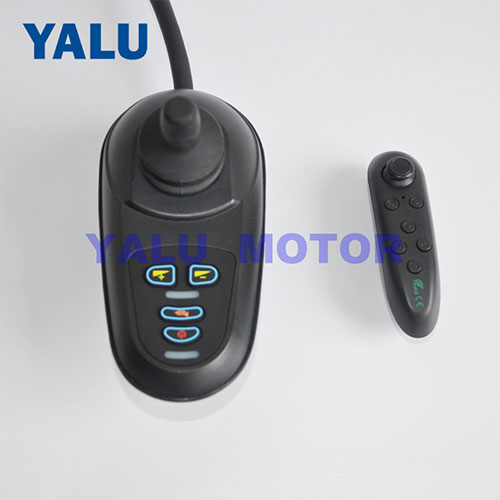

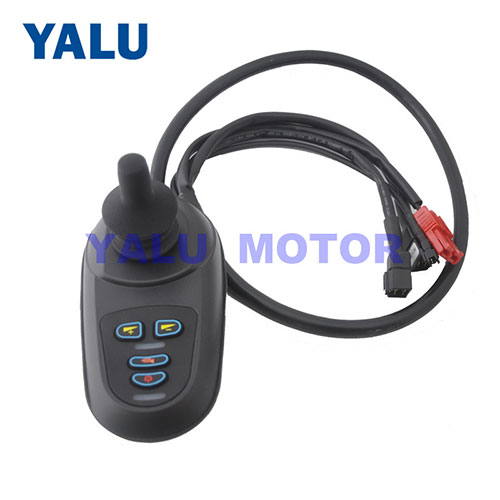

Electric wheelchair scooter joystick controller with remote Control

Electric wheelchair scooter joystick controller with remote Control
Electric wheelchair scooter joystick controller with remote Control Electric wheelchair scooter joystick controller with remote Control Electric wheelchair scooter joystick controller with remote Control Electric wheelchair scooter joystick controller with remote Control
Categories
Wheelchair Controller
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 08/31/2019

The products Basic Parameter

Power supply voltage:

DC24V



Output Current:

40A/50A

Brake voltage:

24VDC



Brake current:

300-3000mA

Brake mode:

Automatic/Manual

Wireless communication mode:

Bluetooth

Indicator Model:

LED indicate/buzzer indicate

Operation voltage:

DC18-34V

Lighting volt:

12VDC

Charging current:

6A Max

Control way:

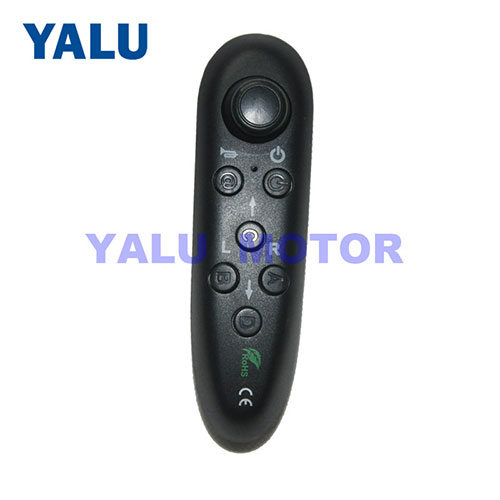

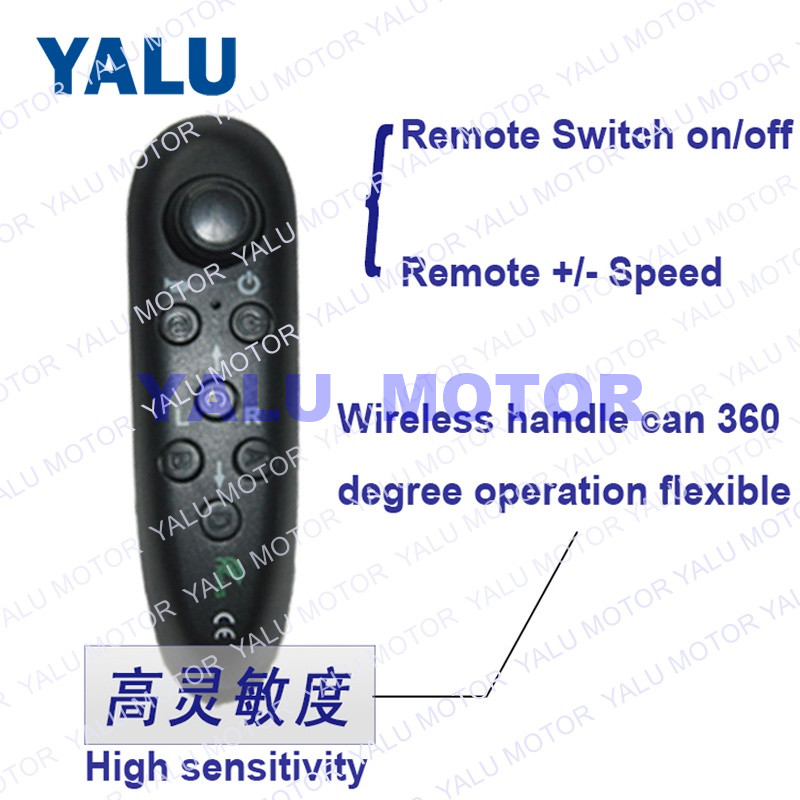

Hall remote control lever,bluetooth handle(can optional)

Interface:

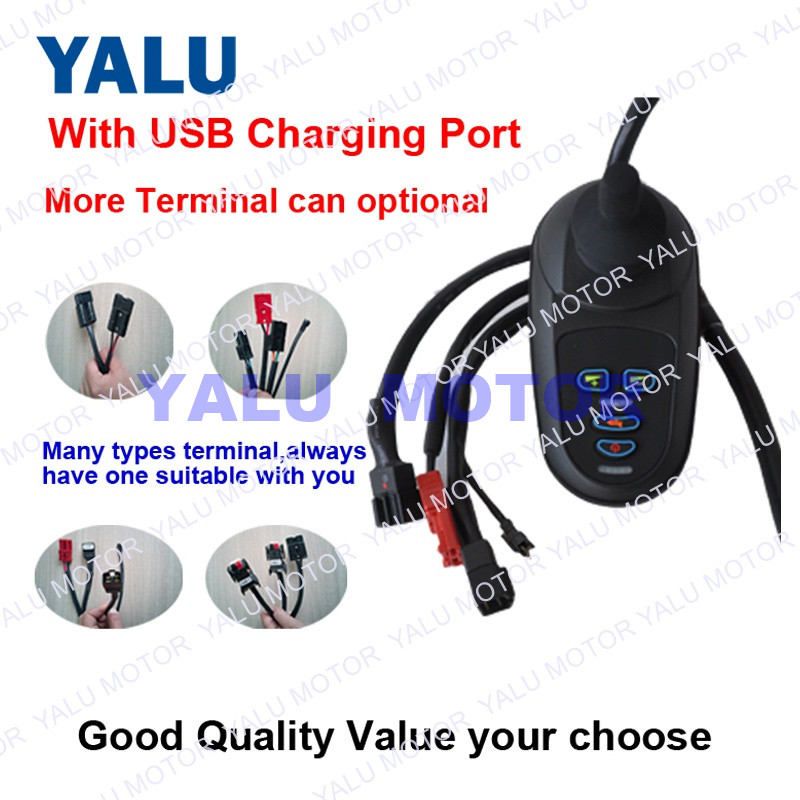

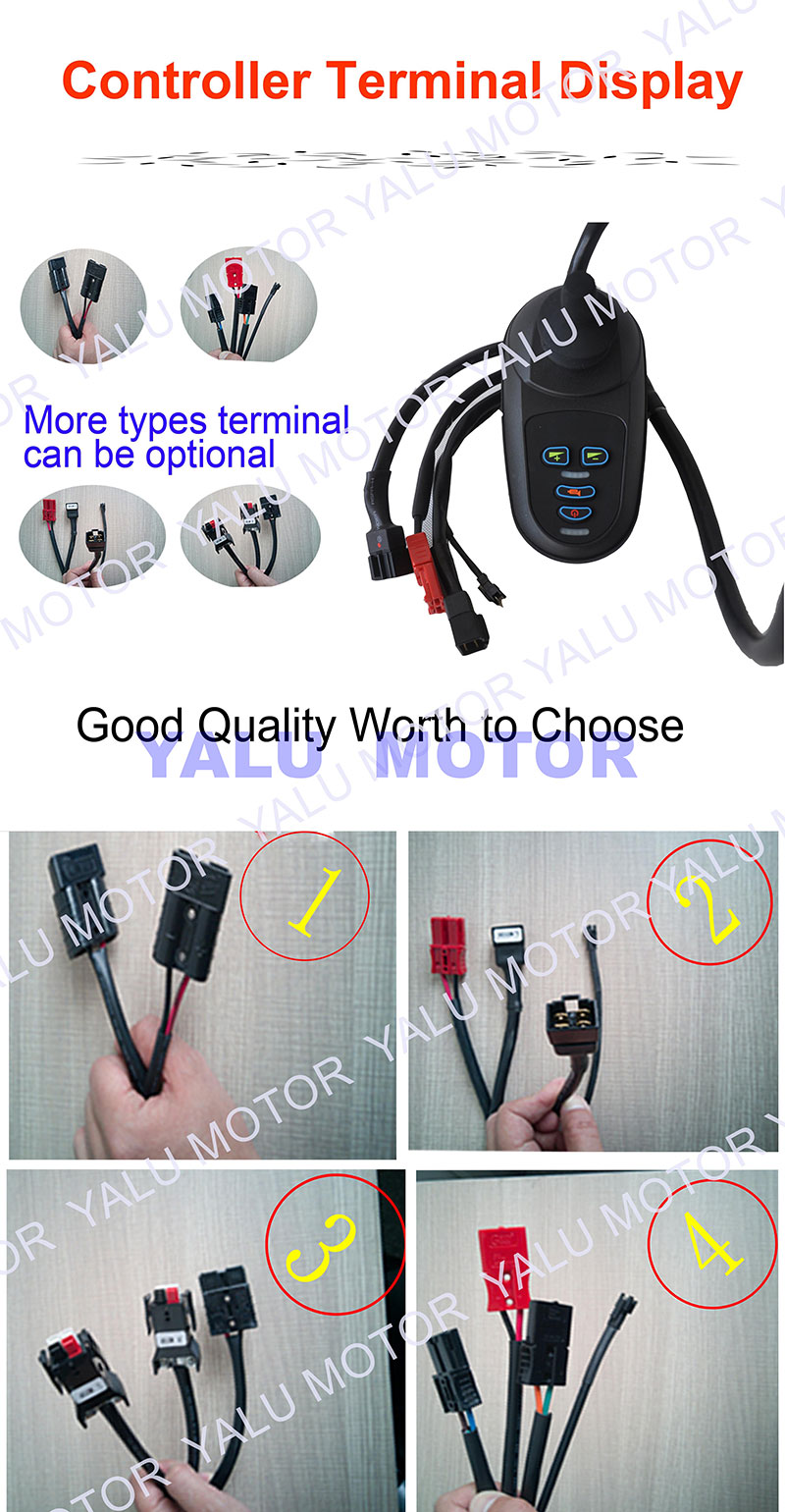

Canon charging port,USB Charging port

Waterproof Grade:

IPX5 Electronic equipment

Operation temperature:

-25’C to +50’C

Storage temperature:

-40’C to +65’C

(You can provide debuggers and decodes for bulk customers)
1.Voltage,current,temperature control detection:In the case of overvoltage,undervoltage, overcurrent,overload,etc.,there are alarm and shutdown protection functions.
2.Watchdog function:If the hardware or software encounters interference or unpredictable conditions,it will restart after half a second.

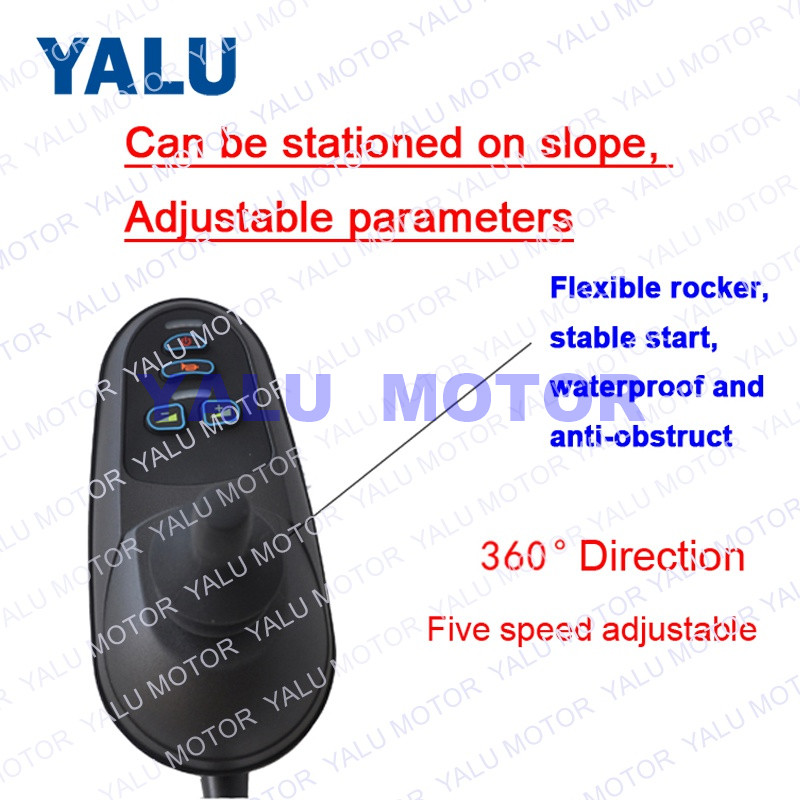

3.Power-off protection function:During operation,the shutdown motor will gradually decelerate to zero.When running on the slope,it can automatically stand on the slope.If the operation is stopped by mistake,it also has the function of suppressing the slope.
4.Boot detection:including left and right motor line connection detection,left and right brake line connection detection,whether the joystick detects battery power at the initial position.LED lights and sound mode alarms will be detected after the corresponding problem is detected.

This Item Include:
1 x Wheelchair Joystick Controller
